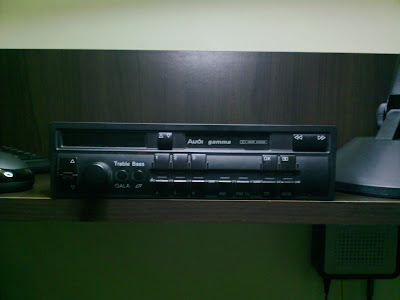

Audi Gamma CC AUZ2Z3 wide panel
Made by Grundig in Portugal
code 0000-1999
MCU Motorola mask 0F11N (MC68HC11L6)
16KB rom / 512B eeprom / 68-pin PLCC / osc 8MHZ
reset 32 / TXD 29 / RXD 26 / VSS 1 to GND / MODB 2 to GND
audio IC TDA7376B
YOU NEED: computer interface (hardware: simple max232 interface, software: MOTOROLA CRACKER), gamma cc dump (search over the internet), tools
STEPS:
1. Remove carradio top cover
2. Conect computer interface
3. Write dump to EEPROM
4. Disconect interface
5. Test code
CODE ENTRY:
After switching on the display will show ' SAFE '
Press [ DX ] and [ FM1/2 ] together until ' 1000 ' is displayed
Press preset [ 1 ] repeatedly for the first digit
Press preset [ 2 ] repeatedly for the second digit
Press preset [ 3 ] repeatedly for the third digit
Press preset [ 4 ] repeatedly for the fourth digit
To save the code press [ DX ] and [ FM1/2 ] again to accept.
DONE!
